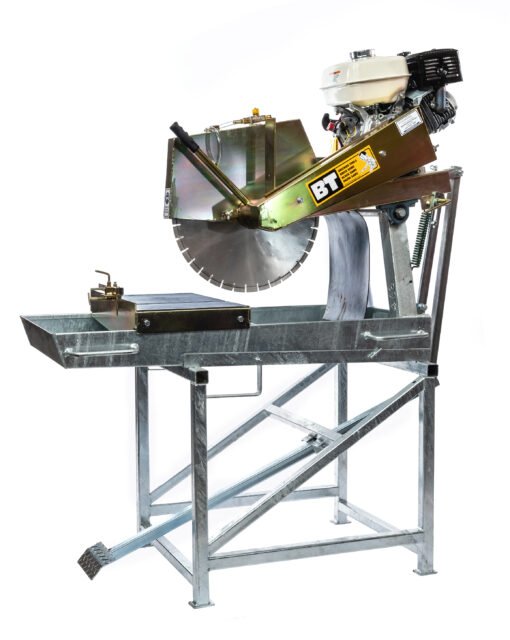

- The 20″ diamond blade with 8″ cutting clearance allows you to breeze through concrete blocks and other masonry products in one clean cut.
- The 9hp Genuine Honda GX270 Engine provides the grunt you need in any location, even the most demanding and remote work sites.
- The enlarged sliding carriage provides a completely stable platform for large scale blocks, pavers or bricks to rest on while being cut.
- Eliminate dust with the adjustable water supply valve.
- The removable mitre guide allows you to consistently cut concrete blocks, pavers and bricks to any length or shape you require.
- The detachable base provides neat transportation options on any ute, truck or van.
- The galvanized stand and base combined with the zinc electroplated saw arm ensures the BT Block Saw repels rust and corrosion throughout many years of operation.
Motor Specifications:
- Custom designed 9hp GX270 Honda Motor
- Engine type 4-stroke, overhead valve, single cylinder with recoil start
- 3/4 keyed horizontal shaft
- Net power 6.3kW (8bhp) at 3600 rpm
- Continuous Rated power 5.1kW (6.8HP) at 3600 rpm
- 270cc Displacement
- Unleaded fuel with Fuel tank capacity 5.3 Liters
- Heavy duty air filtration
- Replacement cyclone filters available.
Blade & Cutting Specifications
- Blade size ( diameter ) 510mm / 20″
- Blade bore diameter 25.4mm / 1″
- Depth of cut: 200mm / 8″
- Length of cut: 540mm /21″
Carriage Dimensions
- Length: 360mm
- Width: 570mm
Blocksaw Dimensions
- Assembled
- Length: 1450mm
- Width: 700mm
- Height: 1550mm
- Weight: 150kg
- Packed for transportation
- Length: 1450mm
- Width: 700mm
- Height: 1070mm
- Weight: 150kg
12 Month Warranty. Made and Assembled in Australia
