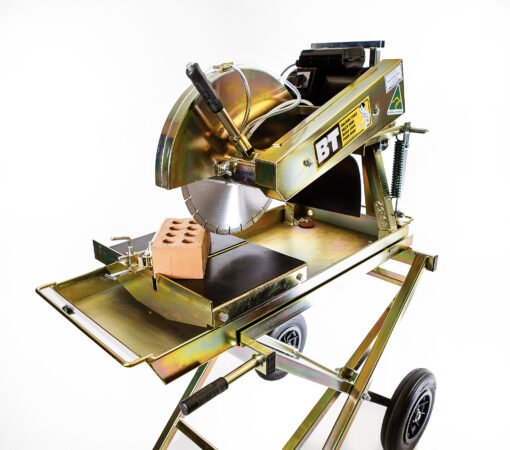

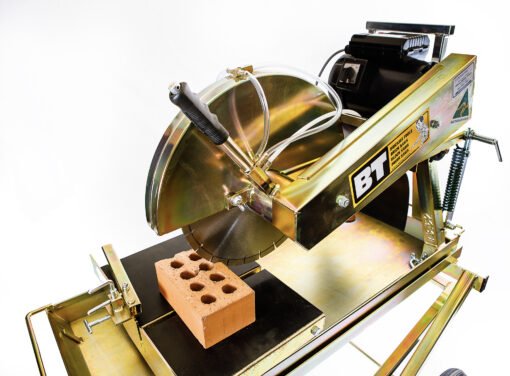

The iconic BT Bricksaw has been upgraded. This newer model now fits either a 14″ or 16″ Diamond Blade.
With a 50-year history of supporting bricklayers, our products are designed to stand the test of time.
BT Engineering is your Quality Tools Partner
Now for the finer details…
• Engineered optimal dust suppression, with our custom-designed 3-way independent water button. On/Off, hands-free or constant flow water modes.
• Fitted rubber splash guard reduces water spray and slurry build up
• Customed designed & durable carriage tray with removable mitre guide for precise cuts of any length or shape.

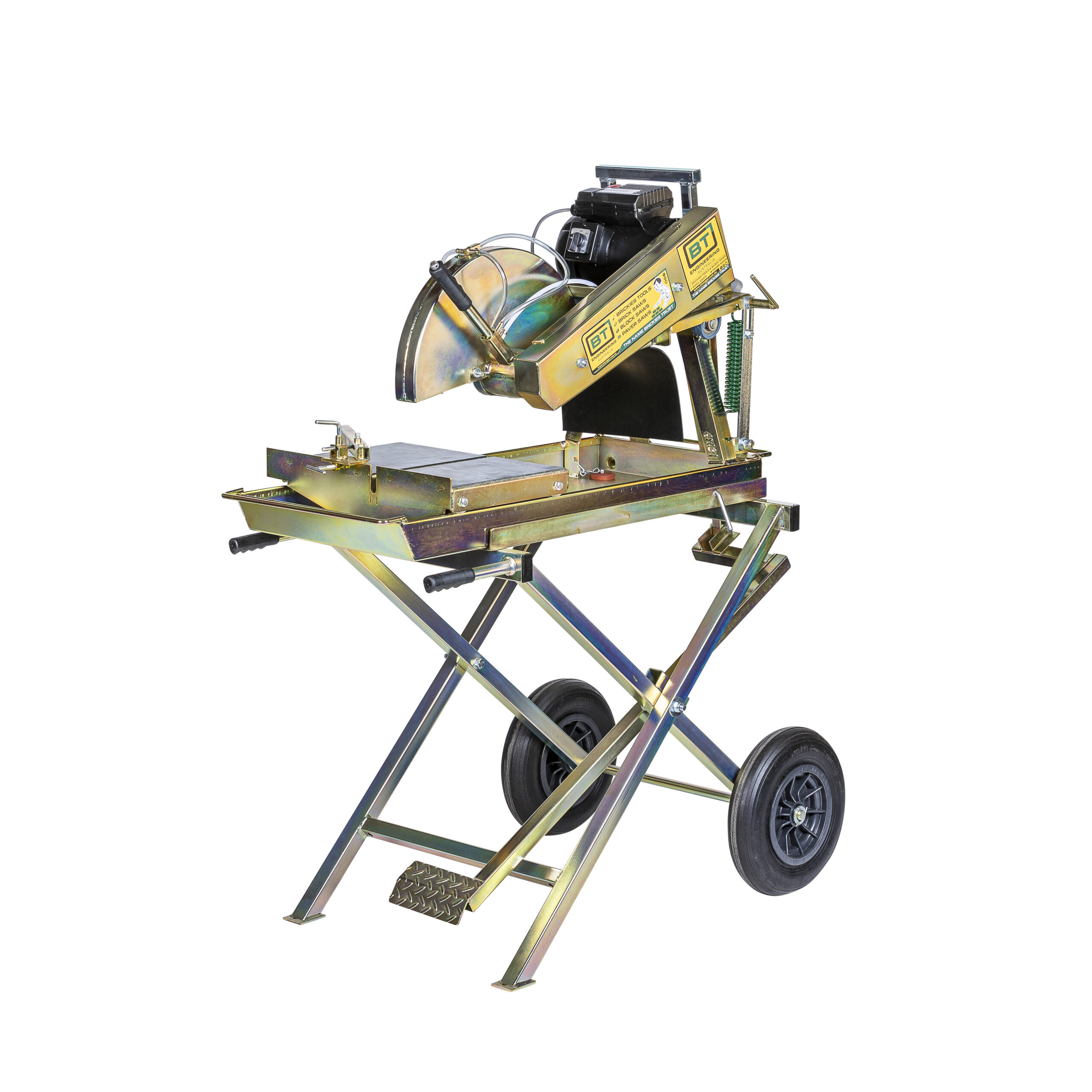

• Lightweight detachable base and stand with puncture proof tyres, ensures easy manoeuvrability onsite and convenient transport.
• Updated blade guard to fit both 14” & 16” blades. Hinged mechanism for continued user protection, effective water disbursement and easy blade changeover.
• 3 cutting options using a fixed position, pull down handle or foot pedal.
• Zinc electroplating ensures the BT Brick Saw repels dust and corrosion for many years of operation.

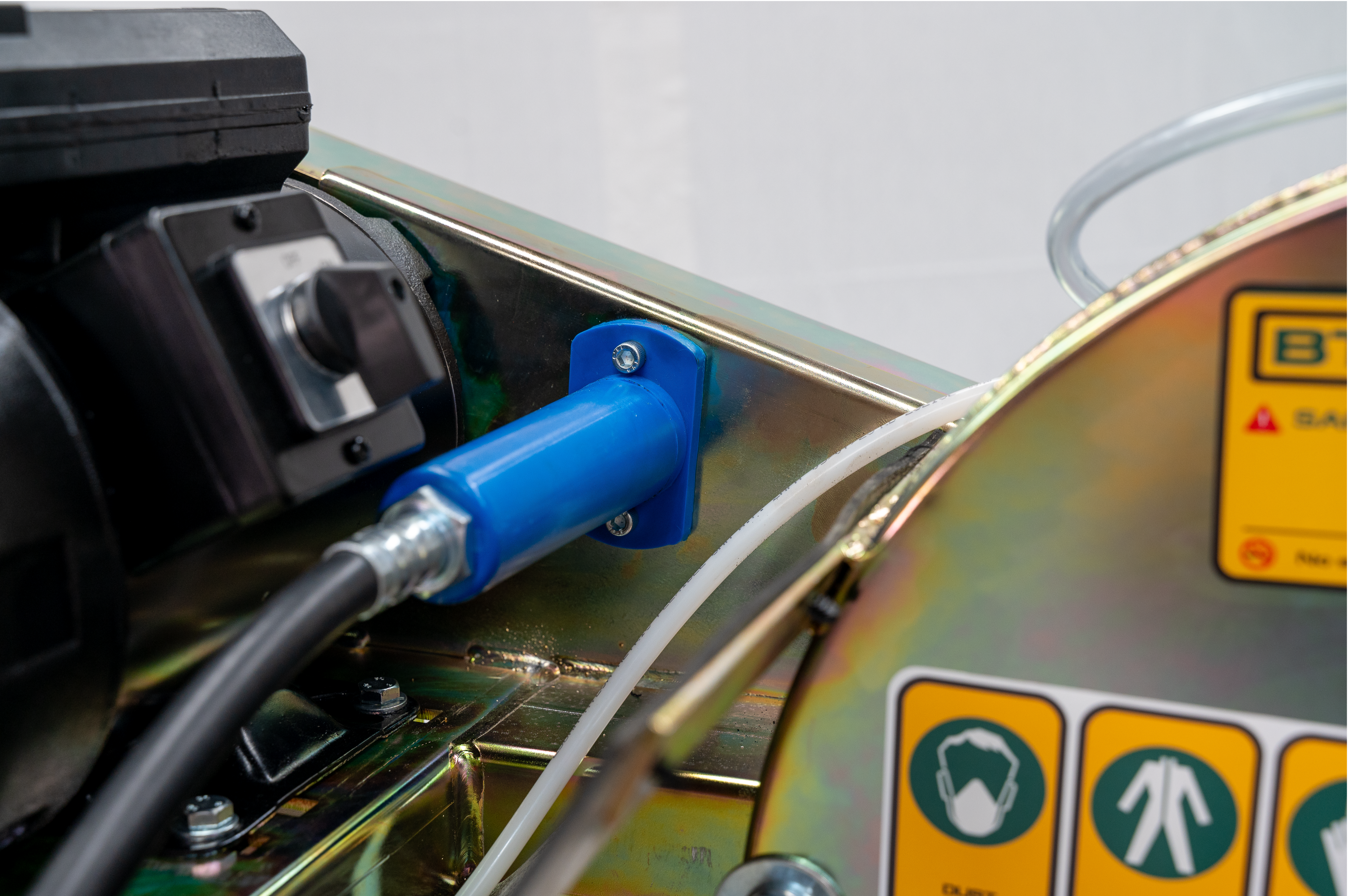

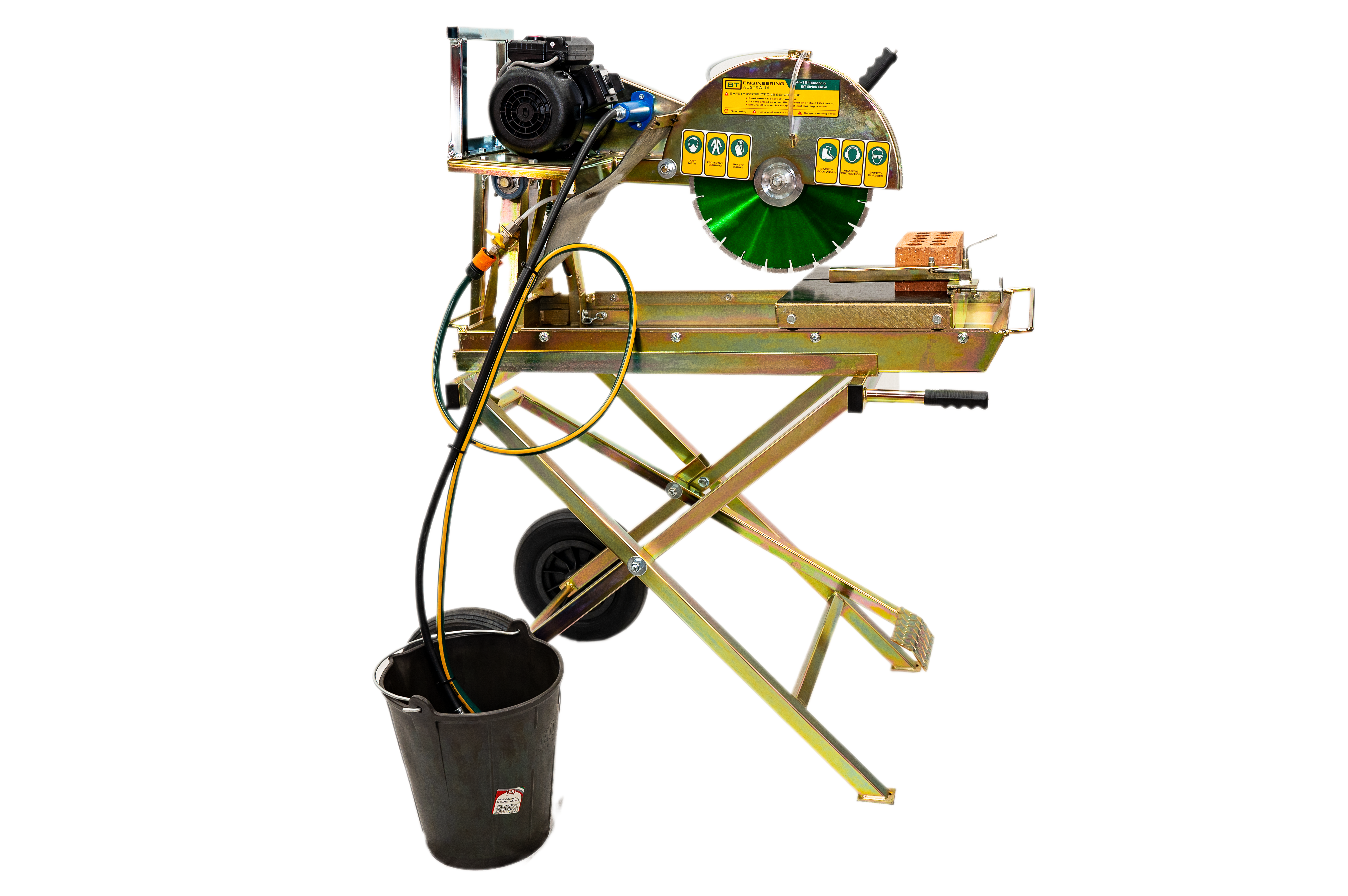

• Added mounts for belt driven water circulation pumps.
• Plus, a wide range of parts to keep your saw running.
Motor Specifications:
- 1800 watt electric Fasco motor
- Voltage : 240 (50hz)
- Current draw ( Amps)
- Max ( Start Up) 55.57
- Minimum 7.97
- Normal 8.86
- RPMs 2230
Blade & Cutting Specifications
- Blade size ( diameter )
- Minimum 14″ (355mm)
- Maximum 16″ (406mm)
- Blade bore diameter 25.4mm / 1″
- Depth of cut: 125mm (14″) to 145mm (16″)
- Length of cut: 500mm
- Clearance up to 200mm
Carriage Dimensions
- Length: 310mm
- Width: 440mm
Bricksaw Dimensions
Assembled
-
- Length: 1180 mm
- Width: 680 mm
- Height: 1560 mm
- Weight: 90kg
Packed for transportation
-
- Length: 1200 mm
- Width: 680 mm
- Height: 800 mm
Blade not included. To get the best out of your BT Bricksaw, it is important to use the correct type of blade. Diamond Blades User Guide
12 Month Warranty. Made in Australia
